Se merWe offer a comprehensive lineup of Cylindrical Grinding Machines spanning conventional, CNC, and fully automatic configurations -- covering everything from single-piece prototyping to high-volume production lines. Whether your workpiece is a crankshaft, a stepped shaft, or a face-and-cylinder composite part, there is a purpose-built machine in our catalog to match it.
Our product portfolio is organized into six core machine families, each engineered for a distinct class of grinding tasks. The table below maps each family to its primary capability and typical application.
| Machine Family | Control Level | Typical Application |
| Conventional Cylindrical Grinding Machine | Manual / Hydraulic | Toolroom work, small-batch OD grinding |
| Conventional Universal Cylindrical Grinding Machine | Manual / Hydraulic | OD + taper + internal bore in one setup |
| Conventional Face And Cylindrical Grinding Machine | Manual / Hydraulic | Shaft shoulders, flanges, combined face/OD |

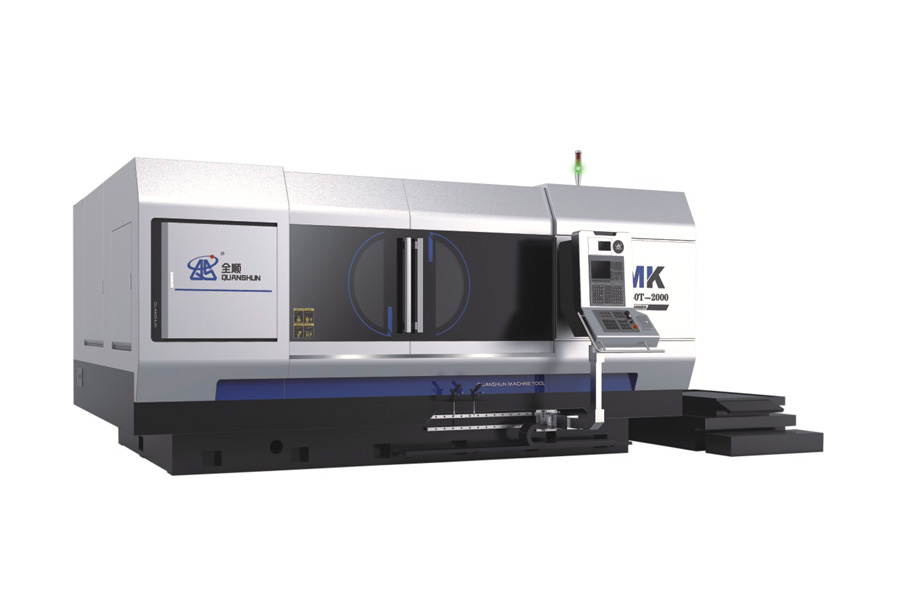

| CNC Cylindrical Grinding Machine (MK/MAK Series) | Full CNC | Precision shafts, hydraulic spools, rollers |
| CNC Universal / Face And Cylindrical Grinding Machine | Full CNC | Complex multi-diameter parts, end faces |
| Centerless Grinding Machine | CNC / Semi-auto | Pins, rods, tubes -- no center hole needed |
| CNC Crankshaft Grinding Machine | Full CNC (Follow-type) | Engine crankshafts, eccentric journals |
| Compound Grinding Machine | CNC Multi-axis | OD + ID + face in a single clamping |
| Automatic Loading And Unloading CNC Grinding Machine | Full CNC + Automation | Lights-out mass production cells |
Our 35,000 m2 manufacturing campus -- including a dedicated machine tool production base and a hydraulic parts production base -- allows us to build, test, and certify every machine category in-house. All products carry ISO 9001-2015 and CE safety certifications.
Control level is the single biggest decision in selecting a grinding machine. Each tier delivers a different balance of flexibility, throughput, and operator skill requirement.
Hydraulic-servo conventional machines give experienced operators direct tactile feedback and easy mechanical setup. They excel at one-off repairs, prototype runs under 50 pieces, and situations where part geometry changes frequently. Capital cost is lower, and maintenance relies on standard hydraulic skills rather than CNC programming expertise.
CNC machines store grinding programs, execute sub-micron infeed cycles automatically, and produce part-to-part consistency that manual grinding cannot match. Our MK/MAK Series CNC cylindrical grinders achieve roundness tolerances of IT5 or better in production conditions (internal testing data, 2023). High-speed spindle variants push surface finish to Ra 0.2 um or finer without a superfinishing step.
Automatic loading and unloading CNC grinders integrate gantry robots or vibratory bowl feeders directly with the machine control. A single operator can supervise multiple cells simultaneously. Cycle time per part drops because human load/unload time -- typically 15-25 seconds in manual operation (source: IMTS productivity benchmarking report, 2022) -- is eliminated entirely.
Workpiece geometry determines which machine axes and wheel configurations are physically required. Use the guide below as a starting filter before comparing specifications.
Straight shafts, pins, and rollers with a single OD diameter are the baseline case. Any machine in our conventional or CNC cylindrical lines handles this. For long slender shafts, choose models with steady-rest support and a follow-type grinding cycle.
Parts with shoulder transitions or compound tapers need a swivel table and programmable infeed. Our CNC Universal Cylindrical Grinding Machine and the mobile wheel holder variants make angle changes between diameters simple -- the program stores each position.
Flanged parts, bearing journals with thrust faces, and gearbox shafts with ground shoulders require simultaneous OD and face grinding. Our CNC Face And Cylindrical Grinding Machine series -- including the High Precision and Double Wheelhead variants -- are specifically configured for this geometry. Simultaneous wheel contact eliminates the perpendicularity error that accumulates when you re-clamp.
Crankshaft pin journals are offset from the rotation axis, requiring a follow-type grinding cycle that keeps the wheel centered on the pin as the crank rotates. Our CNC Crankshaft Grinding Machine and Follow Type CNC Crankshaft Grinding Machine are purpose-built for this motion profile. They are used in automotive, marine, and industrial compressor manufacture.
Bearing rings, pump housings, and similar parts require OD, ID, and face grinding without reclamping. Our Compound Grinding Machine addresses this with multiple spindle heads and synchronized CNC axes, cutting total cycle time versus a three-machine routing by up to 40% (internal time-study data, 2023).
Bars, tubes, and small-diameter pins that cannot be fixtured between centers are the domain of the Centerless Grinding Machine. The workpiece rides on a blade between two wheels, making it ideal for high-volume through-feed production of rollers, needle pins, and precision rods.
Production scale affects not just machine selection but also automation level, floor-space layout, and total cost of ownership. The matrix below aligns volume tiers with recommended configurations.
| Annual Volume (parts) | Recommended Configuration | Key Benefit |
| Under 500 | Conventional Cylindrical or Universal Grinding Machine | Low capital, quick mechanical setup, broad versatility |
| 500 -- 10,000 | CNC Cylindrical Grinding Machine (MK/MAK Series) | Stored programs eliminate re-setup; consistent tolerance |
| 10,000 -- 50,000 | High-Speed or Double Wheelhead CNC Grinding Machine | Faster cycle times; two-face simultaneous grinding |
| 50,000+ | Automatic Loading And Unloading CNC Grinding Machine | Near-continuous operation; reduced labor per part |
| Mixed / Flexible Cell | Compound Grinding Machine or CNC Universal with robot | Handles multiple part families from one machine footprint |
If your production mix changes seasonally or your part family is still evolving, a CNC Universal Cylindrical Grinding Machine with a robot-ready interface gives you the flexibility to add automation later without replacing the core machine.
Choosing a grinding machine supplier is a long-term commitment. Here is what distinguishes our offer from a standard equipment purchase.
Our 32,000 m2 building area houses both machine tool and hydraulic parts production under one roof. We design the spindle, the hydraulic circuit, and the CNC control integration together -- so there is no finger-pointing between sub-suppliers when a tolerance question arises.
Beyond the catalog, we design and develop non-standard special grinding machines tailored to your part geometry and production constraints. Requests typically begin with a workpiece drawing and a cycle-time target; our engineers return a feasibility study within two weeks.
We hold ISO 9001-2015 and CE certifications, and we were recognized as a National High-tech Enterprise. In 2021, we were rated a specialized and innovative small and medium-sized enterprise in Zhejiang Province. Our machines are currently operating in more than 20 countries, including the United States, Germany, Japan, and markets across Southeast Asia -- and we hold self-export qualifications to support direct shipment.
Our service commitment covers technology documentation, CNC software, operator and maintenance training, and end-to-end automation integration. Whether you are installing a single conventional machine or building a multi-cell automatic line, the same engineering team that designed the machine is available to support commissioning and ongoing process optimization.
Decades of market presence have built a reputation summarized by our operating principle: quality first, reputation first, service first. Our integrated manufacturing base shortens lead times compared to assemblers who source major components externally, and our direct export capability means no additional distribution markup for international buyers.
Ready to specify the right machine? Browse the full range of Cylindrical Grinding Machines or contact our engineering team with your workpiece drawing and production requirements for a tailored recommendation.
